Automatic PLC 3500pcs/h Ice Cream Cone Baking Machine

Guang Zhou Jian Xiang Machinery Co. LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Automatic PLC 3500pcs/h Ice Cream Cone Baking Machine

  • 1
  • 2

Brand Name : Gonghexiang

Model Number : SD80-L37X2

Certification : ISO9001

Place of Origin : China

MOQ : 1PS

Price : Negotiable

Payment Terms : T/T

Supply Ability : Sufficient supply

Delivery Time : 30-45DAYS

Packaging Details : RAW PACK

Name : ice cream cone plant

Capacity : 3500-4000pcs/h

VoltagE : 380V

Total Power : 3.37 kw

LPG consumption : 7-8kg/h

Feature : Energy Saving

Warranty : One Year

material : Stainless Steel

Application : Ice cream,Food

Production Scope : Product Line

Process : Thermal Processing

Contact Now

Two Color High Capacity And Durable Automatic Ice Cream Cone Machine


Working Principle:


Feeding the mixed flour paste by feeding pump to the baking plate and automatically close the baking plate, forming as the thickness of the dough, then put into the oven to bake. after baking, the paste has forming. using the manipulator to put it in the mould of rolling to make the finished products. after demould conveyor the products.


Specifications:


Voltage:380vProduct size:length less than 135mm
Total power:3.37kwOutput/hour:3500-4000pcs/h
LPG consumption:7-8kg/hElectrical accessoriesSchneider
Machine dimension:L8XW2.1XH2MPLC controller:Schneider
Net weight:4500kgController:Schneider



Process:


1. The stirred dough is delivered to the baking pans by the slurry pump.

2. The upper and lower plates of the baking plate are automatically closed, and the cakes are baked according to the preset thickness of the cakes.

3. When the baking plate turned to the position of the manipulator(it has been baked already), and the manipulator absorbs baked cake sends them to the forming mold.

4. The forming mold rolls the cake into a cone shape, and then sends it to the conveyor belt for the arrangement.



FAQ


1. Ask:What is your guarantee of machine ?

Answer:usually our guarantee is 1 years.

2. Can you arrange your technicians to install the machine for us?

Answer:Yes,We will assign our engineers to go abroad for installing machines for our users.

5.Ask: Are you factory or trading company?

Answer: We are a factory in this field nearly 20 years.

6.Ask:Are there any accessories for the purchase of the machine?

Answer:Yes,We will give away random accessories and some installation tools.


After Sale Service


♥. On-sale-service: Accompany with you to look around our factory, explain the manufacture process of our machines and check the working performance of our machine.

♥. After-sale-service: Engineers are available to install debugging equipment of the whole production line, besides, commissioning and training operators on site.


Packaging & Shipping


1. We always use standard export wooden packing,carton box.

2. You can choose express, by air,by train or by sea.Always we will give our best recommend based on our experience.


Welcome to contact us with your cone pictures,design,size and capacity then we can talk more and suggest you the suitable ice cream cone machines.



Product Tags:

3500pcs/h Ice Cream Cone Baking Machine



PLC Ice Cream Cone Baking Machine



SS Sugar Cone Making Machine


Cheap Automatic PLC 3500pcs/h Ice Cream Cone Baking Machine for sale

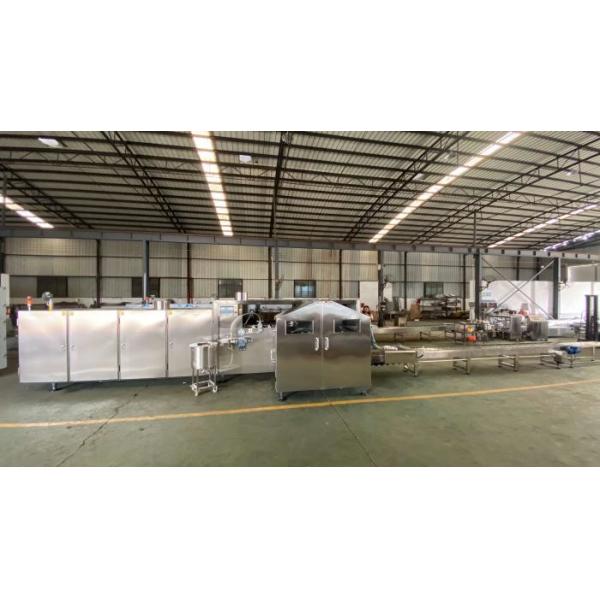

Automatic PLC 3500pcs/h Ice Cream Cone Baking Machine Images
